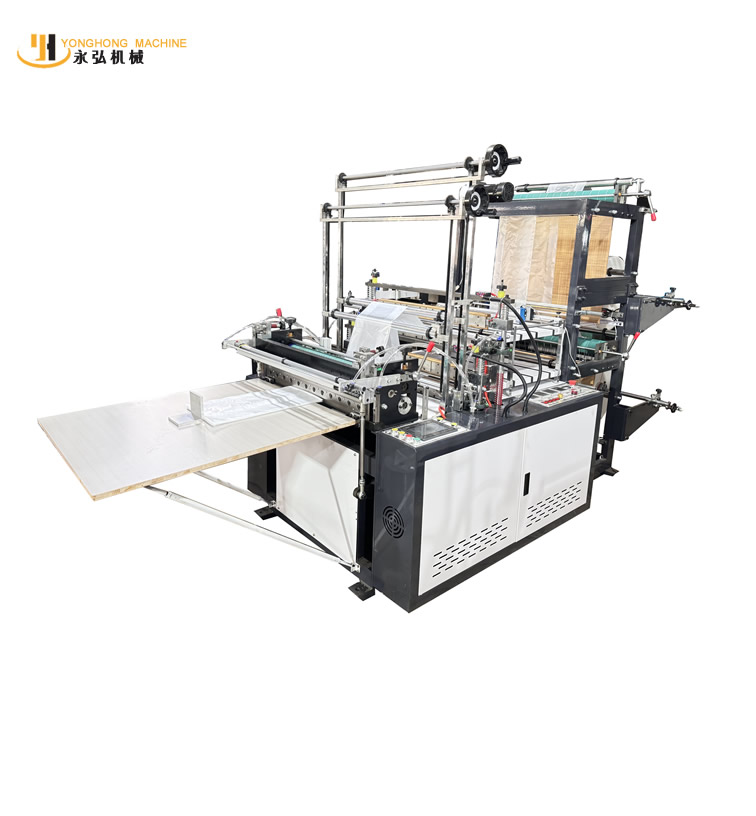

800 type double-layer high-speed cold cutting bag making machine

Model	YH-LJ600	YH-LJ700	YH-LJ800	YH-LJ1000
The maximum sealing and cutting width	220-500mm	320-600mm	360-700mm	400-800mm
Sealing and Cutting Length	800mm	1000mm	1000mm	1000mm
Sealing and Cutting Thickness	0.004-0.10mm	0.004-0.10mm	0.004-0.10mm	0.004-0.10mm
Length error	PN 1mm	PN 1mm	PN 1mm	PN 1mm
Machine speed	40-120 pcs/min	40-120 pcs/min	40-120 pcs/min	40-120 pcs/min
Main motor power	1.1Kw	1.5Kw	1.5Kw	2.2Kw
Number of heating zone	1.2Kw	1.5Kw	2.2Kw	3Kw
Total power	2.5Kw	3.2Kw	4.5Kw	5Kw
Weight	700Kg	820Kg	820Kg	850Kg
Machine dimensions (length x width x height)	2650x1200x1650mm	2650x1300x1650mm	2650x1400x1650mm	2650x1600x1650mm
