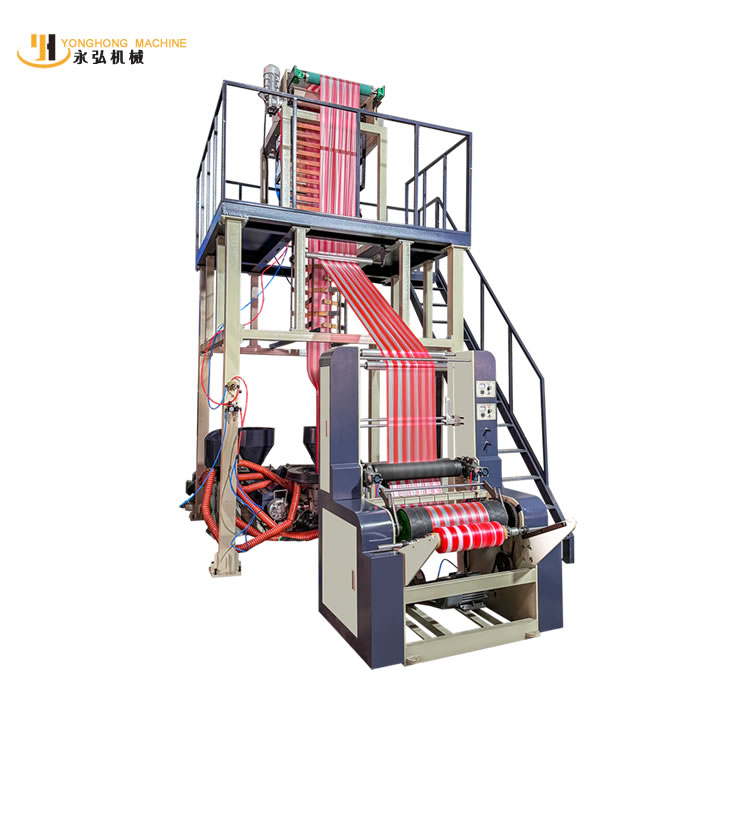

Double Layer Co Extrusion Color Strip Blown Film Machine

Main technical parameters:

Model	45x2	50x2	55x2
Screw diameter(mm)	45x2	45x2	45x2
Film bending diameter(mm)	100-600	200-800	300-1000
Single side thickness of film(mm)	0.01-0.10	0.01-0.10	0.01-0.10
Maximum extrusion inside(mm)	35	50	65
Aspect ratio	26:1	26:1	26:1
Host power(kw)	15	18.5	22
Traction motor power(kw)	1.1	1.1	1.5
Heating power(kw)	15	18	25
Overall dimensions(mm)	4800x1900x4100	5500x2100x4700	6500x2300x4900
Weight	2T	2.5T	3T
