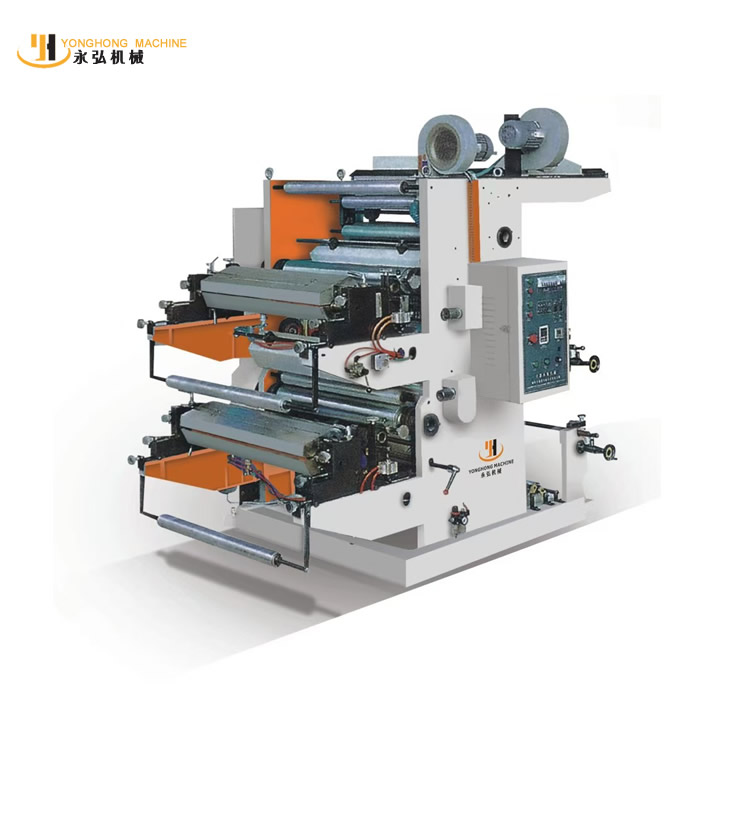

YH-YT4600 Relief Printing Machine

Performance characteristics:
This machine is suitable for printing packaging materials such as polyethylene, polypropylene plastic bags, glass paper, and roll paper. It is an ideal printing equipment for food paper packaging, supermarket handbags, horse bags, clothing bags, and other packaging.
1. The meter counter can set the printing quantity according to requirements, automatically stop when the quantity is reached, and automatically stop when the material is cut off.
2. Manual lifting and lowering of the printing plate cylinder, automatic ink mixing after lifting and lowering.
3. The mesh roller transfers ink, and the ink color is uniform.
4. A reliable drying system, coupled with high-speed operation, automatically shuts down when stopped.
5. 360 degree continuously adjustable longitudinal flower matching device.
6. Both the plate roller seat and the feeding rack are equipped with jog and stop buttons for easy operation of the machine during plate installation.


Main technical parameters:

Upper limit of printing width
 600mm
Printing width limit
 560mm
Length range of printed materials
 190-960mm
Upper limit of coil diameter
 450mm
Printing speed
 5~50m/min
Plate thickness (including double-sided adhesive tape)
 2.38mm
Total power
 11kw
Machine weight
 3000kg
Overall dimensions
 4200x1600x2400mm
